Bag Opening, Filling, and Trim Sealing Machinery
|
Titan Bagmasters
- Extensive line of bag opening and filling machines
for a wide variety of applications using cartridge
and specialty bags.
- Cost efficient, high speed design virtually eliminates
manual bag handling and the need for skilled operators.
- No installation required - Out of the box production.
Operates on standard house current.
Titan
Drop-Sealers
- Drop-Sealers feature fully automatic operation -
No operator required.
- Drop-Dealer automatically trim-seals with our positive
scrap removal system and integrated safety system.
- Quick payback insured by high production capabilities
in a single or multi-shift evironment.
|
Bagmaster Specifications
|
Model |
Max. Bag Width |
Dimensions(LxWxH) |
Electrical |
Shipping
Weight(lb/kg) |
|
401 |
14" |
25"x16"x8-3/4" |
120V @ 2Amps |
55/25
|
|
402 |
14" |
25"x22"x8-3/4" |
120V @ 2Amps |
60/27
|
|
404 |
14"
|
25"x22"x8-3/4" |
120V @ 2Amps |
60/27
|
|
501 |
24"
|
25"x26"x8-3/4"
|
120V @ 2Amps |
102/46
|
| 502
|
24"
|
25"x32"x8-3/4"
|
120V
@ 2Amps |
102/46
|
| 504
|
24"
|
25"x32"x8-3/4"
|
120V
@ 2Amps |
105/48
|
Drop-Sealer
Specifications
|
Model |
Dimensions(LxWxH) |
Electrical |
Shipping
Weight(lb/kg) |
|
615 TJA/615 DST |
28.5"x31"x42" |
120V @ 2 Amps TJA / 7 Amps DST |
225/102
|
|
625 TJA/625 DST |
37 "x41"x42" |
120V @ 3 Amps TJA / 8 Amps DST |
350/159
|
|
Conveyor for 615 |
54 "x27"x44" |
120V / 50/60 HZ / 3 Amps |
175/79
|
|
Conveyor for 625 |
72 "x37"x44" |
120V / 50/60 HZ / 3 Amps |
225/102
|

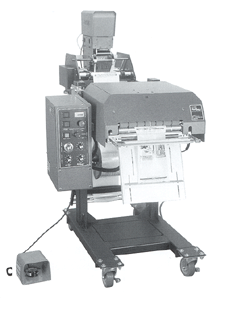

Titan Model 6500 Rollbag
Contact
Us | Free Assistance
|
- Automatically opens Pre-Made Bags-on-a-Roll, and
seals them at speeds up to 60 bags per minute
- Handles Bags-on-a-Roll from 2"x2" up to
12" x 22", in almost any thermoplastic material.
- Interfaces with vibratory product orienter/counter
systems, scales and other fully automatic product
infeed machines.
- Available
with a fully programmable printer that prints high
density UPC codes, graphics, and alphanumerics directly
to bags so you can print and package at the same time.
|
|
|
6500 Specifications
Size: (in) 38.5L x 29.25W x 40.5H (cm) 97.8L x 74.3W
x 102.8H
Air
Requirements: 80 PSI - 3 Cv
Electrical
Requirements: 120V @ 10Amps
Minimum/Maximum
Bag Size: (in) 2 x 2 to 12 x 22 (cm) 5 x 5 to 30.5 x
55.9
Seal
Area: (in) 12 x 1/8 (cm) 30.5 x .32
Bag
Materials: Polyethylene, Polypropylene, Food Grade,
Anti-Corrosive, Anti-Static
Weight:
202 lbs. / 444.4 kg
|
|
